PIC16F877A/887

AnteriorPIC18F4550/45K50SiguienteConfiguración de bootloader

Última actualización hace 1 año

¿Te fue útil?

Esta herramienta solo es compatible con los microcontroladores PIC16F877A y PIC16F887 precargados con el Bootloader Microside.

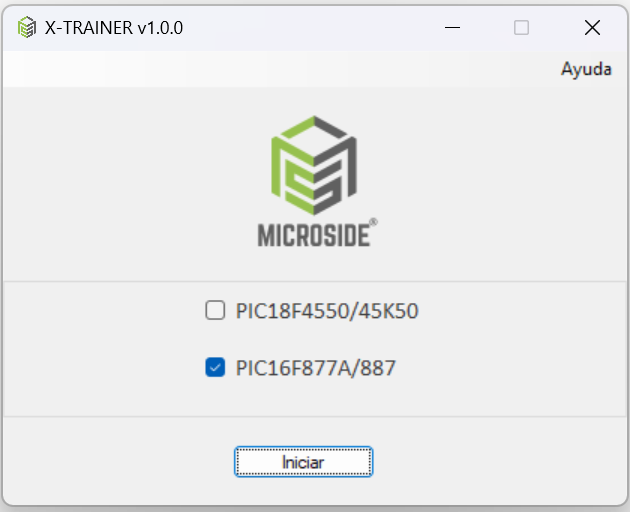

  1. Abre el apartado PIC16F877A/887 en el software X-TRAINER Suite.

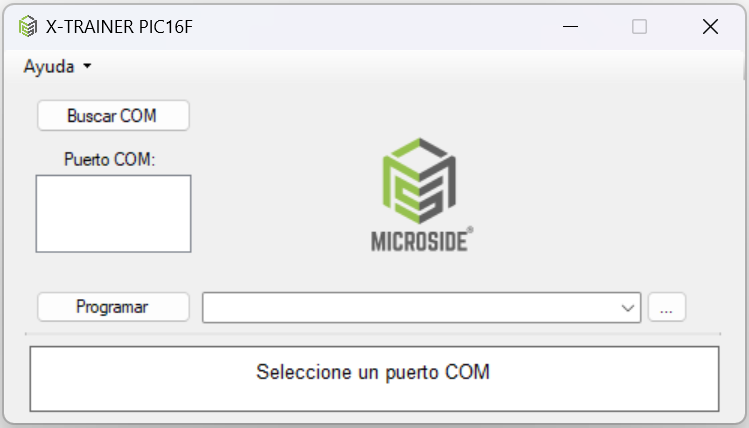

  1. Se mostrará la siguiente ventana:

  1. Da clic en Buscar COM y observa los puertos desplegados, después conecta la tarjeta X-TRAINER a la computadora, vuelve a dar clic en Buscar COM y selecciona el puerto habilitado por la tarjeta X-TRAINER.

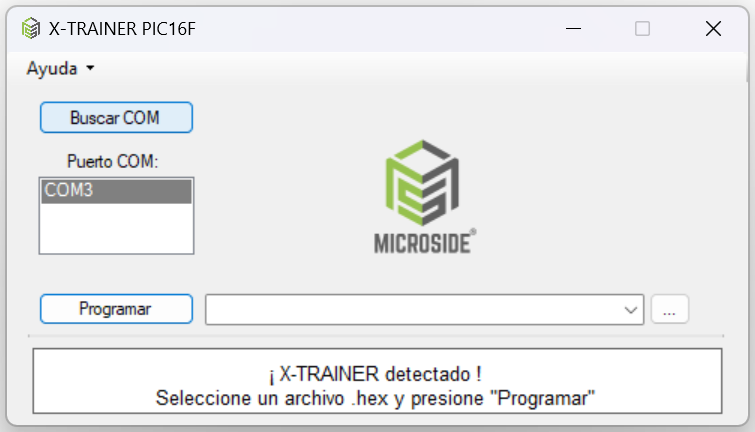

Verifica que la tarjeta X-TRAINER haya sido detectada con éxito.

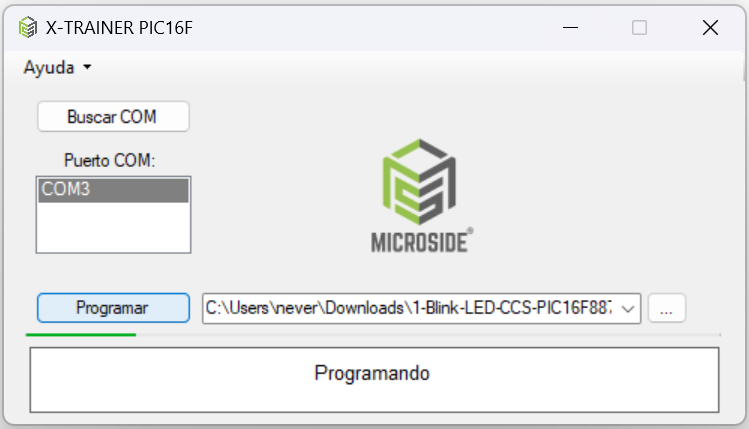

  1. Da clic en el botón pequeño con los tres puntos que se encuentra al lado derecho, se abrirá una ventana del explorador de archivos, selecciona el archivo .hex a programar en la tarjeta X-TRAINER y da clic en el botón Programar.

Antes de programar tu tarjeta X-TRAINER es importante verificar que los pines de programación C6 y C7 no estén conectados a tu circuito. Una vez finalizado el proceso de programación podrás hacer uso de ellos.

  1. Por último, cuando termine el proceso de programación aparecerá el mensaje “¡ X-TRAINER Programado correctamente !”.

Una vez programada la tarjeta X-TRAINER, es posible seguir programándola sin necesidad de volver a seleccionar el puerto COM solo si no se cierra el software, de lo contrario es necesario volver a seleccionar el puerto.

↘️
