# Antena Activa GPS

<figure><img src="/files/USyd71RDQfDtOqlzuTHp" alt=""><figcaption></figcaption></figure>

<table data-card-size="large" data-view="cards"><thead><tr><th align="center"></th><th data-hidden data-card-target data-type="content-ref"></th></tr></thead><tbody><tr><td align="center"><mark style="color:green;"><strong>Comprar</strong></mark></td><td><a href="https://www.microside.com/shop/antena-activa-gps-113">https://www.microside.com/shop/antena-activa-gps-113</a></td></tr></tbody></table>

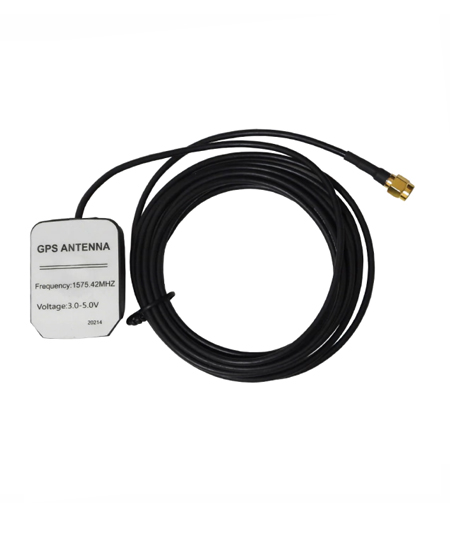

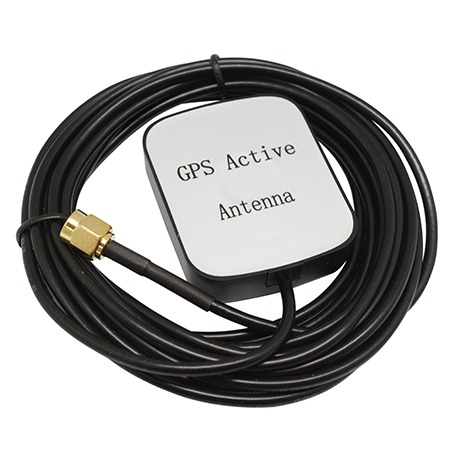

La **Antena Activa GPS** es ideal para aplicaciones que requieren de una alta precisión de posicionamiento mediante la combinación de señales en sistemas GPS, GLONASS. Cuenta con un conector SMA macho, un cable de 2.8 metros de largo y una superficie magnética plana para mantenerla estable en diversas superficies.

Posee una carcasa totalmente resistente al agua IP67 y resistente a los rayos UV, permitiendo su uso en entornos al aire libre.

<figure><img src="/files/M1yF0Lj2lyGo7yLOAjmM" alt=""><figcaption></figcaption></figure>

### **TABLA DE CONTENIDO**

1. [**Dimensiones**](#i.-dimensiones)
2. [**Especificaciones**](#ii.-especificaciones)

## **I. Dimensiones**

<figure><img src="/files/ZMqqI4pao5TVWnxQJhI5" alt="" width="563"><figcaption></figcaption></figure>

## **II. Especificaciones**

<table data-header-hidden><thead><tr><th width="299"></th><th></th></tr></thead><tbody><tr><td><strong>Conector</strong></td><td>SMA Macho</td></tr><tr><td><strong>Frecuencia (MHz)</strong></td><td>1,575.42</td></tr><tr><td><strong>Voltaje</strong></td><td>3 a 5 V</td></tr><tr><td><strong>Corriente Max.</strong></td><td>20 mA</td></tr><tr><td><strong>Ganancia LNA (dBi)</strong></td><td>28</td></tr><tr><td><strong>Polarización</strong></td><td>RHCP</td></tr><tr><td><strong>Temperatura de operación (°C)</strong></td><td>-40 a +85</td></tr><tr><td><strong>Dimensiones</strong></td><td>48 x 37 x 16 mm</td></tr><tr><td><strong>Peso (g)</strong></td><td>80</td></tr></tbody></table>


---
