STANDARD mikroBUS™
The world´s fastest growing add-on board standard
Smallest number of pins maximum expandability.
The mikroBUS™ socket comprises a pair of 1×8 female headers with a proprietary pin configuration and silkscreen markings. The pinout (always laid out in the same order) consists of three groups of communications pins (SPI, UART and I2C), six additional pins (PWM, Interrupt, Analog input, Reset and Chip select), and two power groups (+3.3V and 5V).
Integrate mikroBUS™ in your design
It's an open standard
mikroBUS™ - the add-on board socket standard that offers maximum expandability with the smallest number of pins. Integrate it into your design and open the doors of thousands of possibilities by using compatible Click boards™.

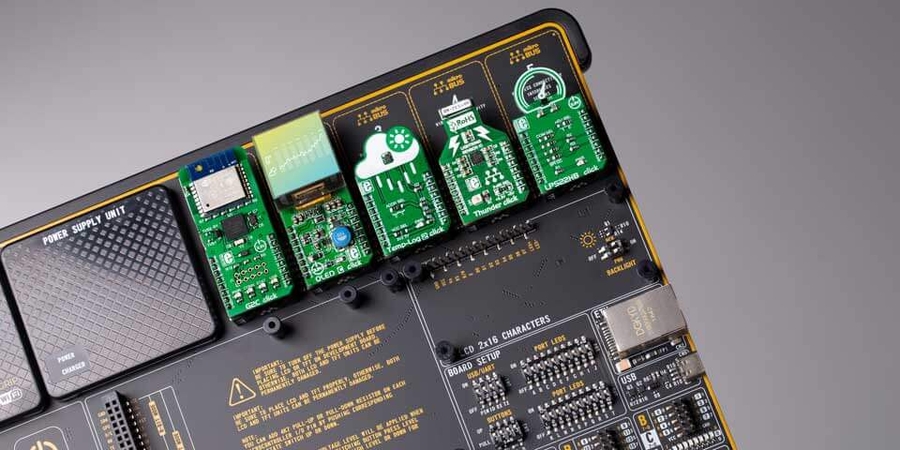

Adding a mikroBUS™ socket to your design allows you to utilize the ever-expanding range of Click boards™. Sensors, wireless transceivers, audio amplifiers, LED displays and more. It is the simplest way to add maximum connectivity. All the major vendors have accepted the mikroBUS™ standard and added it to their development boards, so join the revolution.
If you are interested adding the mikroBUS on your board and would like Mikroe to do review as well as promotion of that board.
